Weavingspace: a new way to make multivariate maps

David O’Sullivan

Geospatial Stuff

University of Auckland

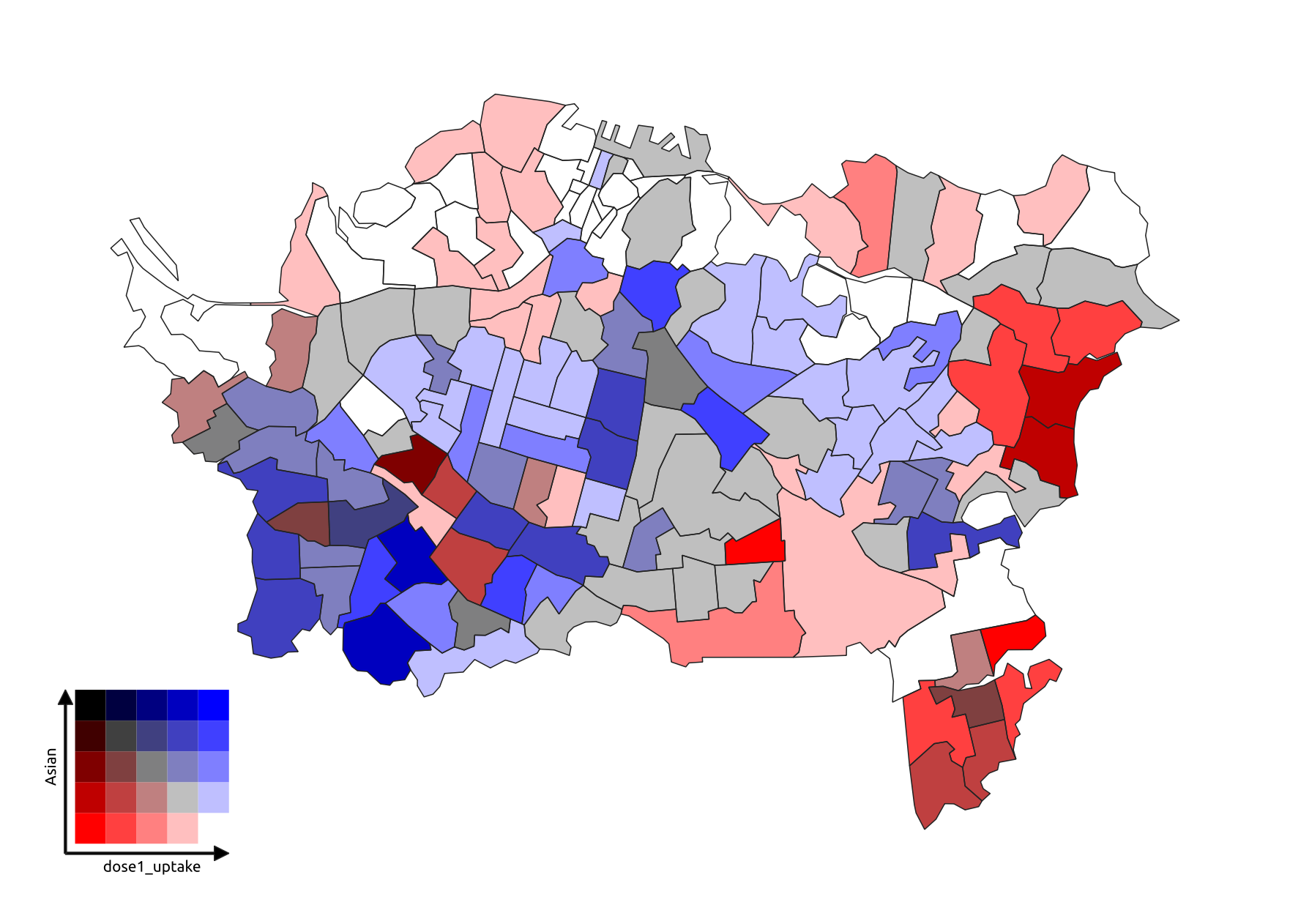

Mapping multivariate data

A hard problem

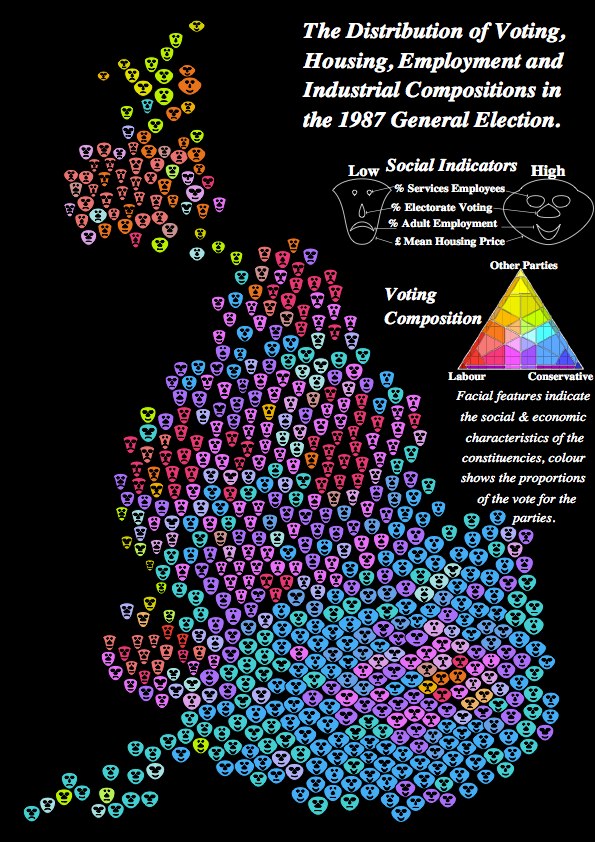

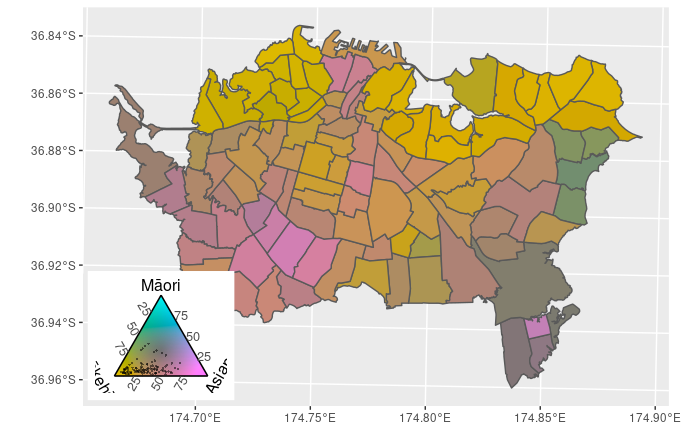

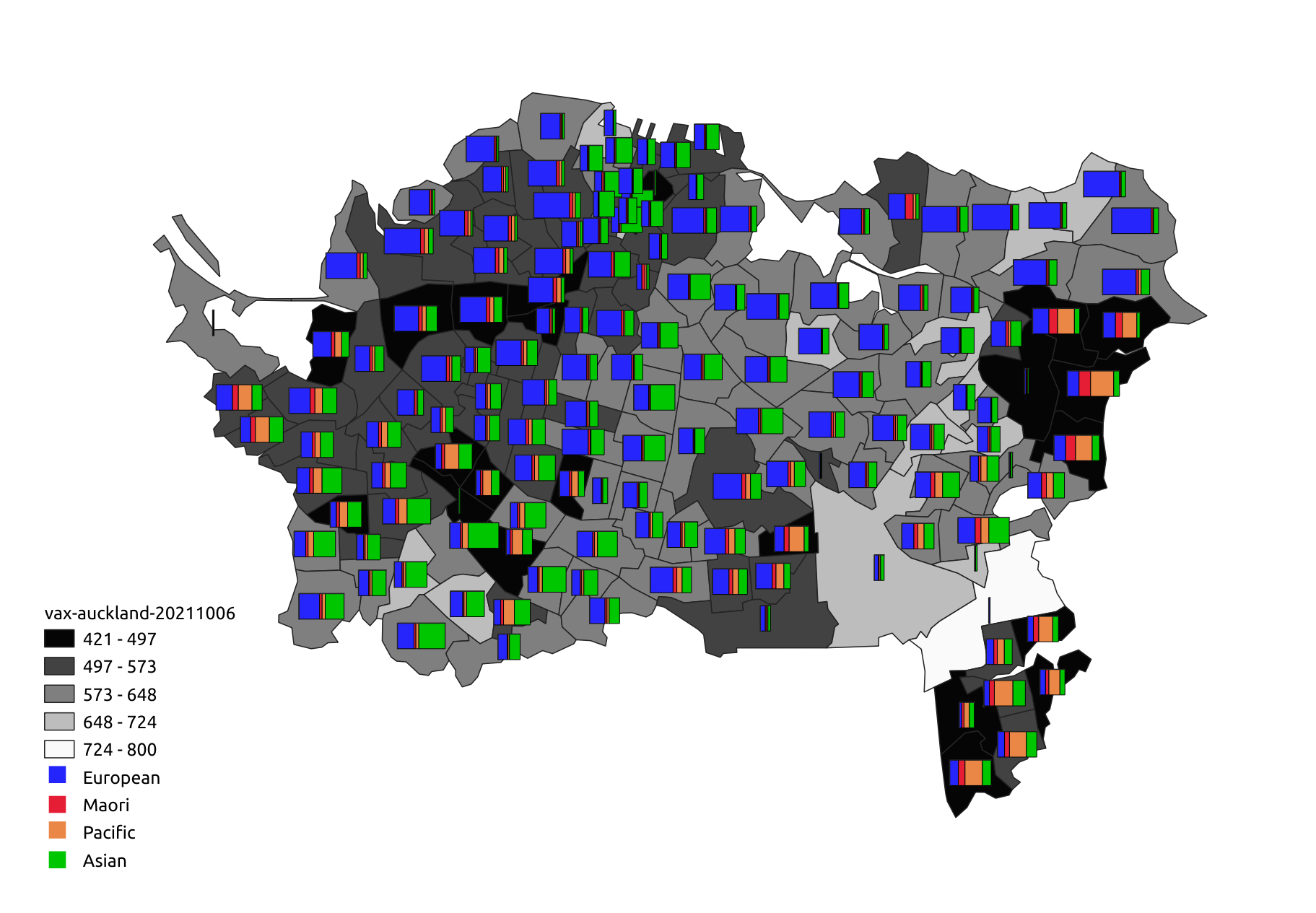

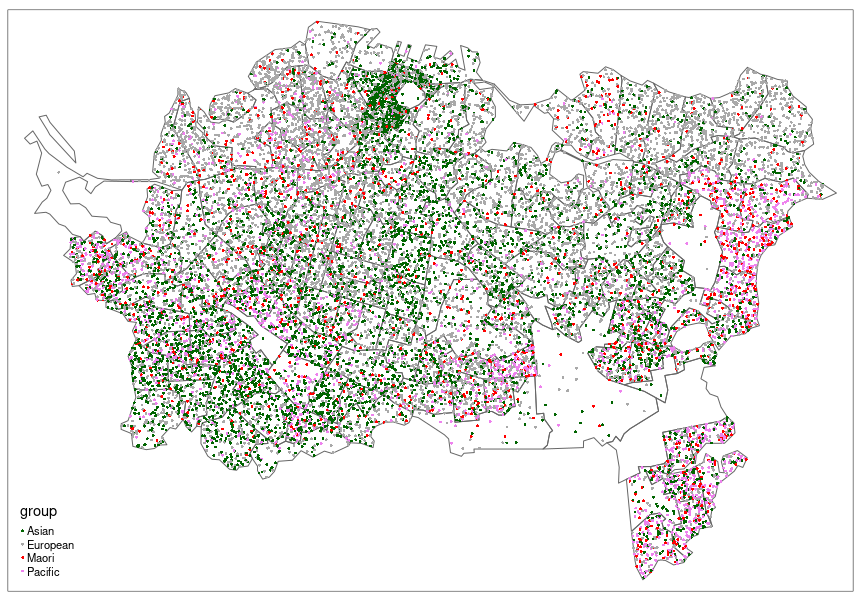

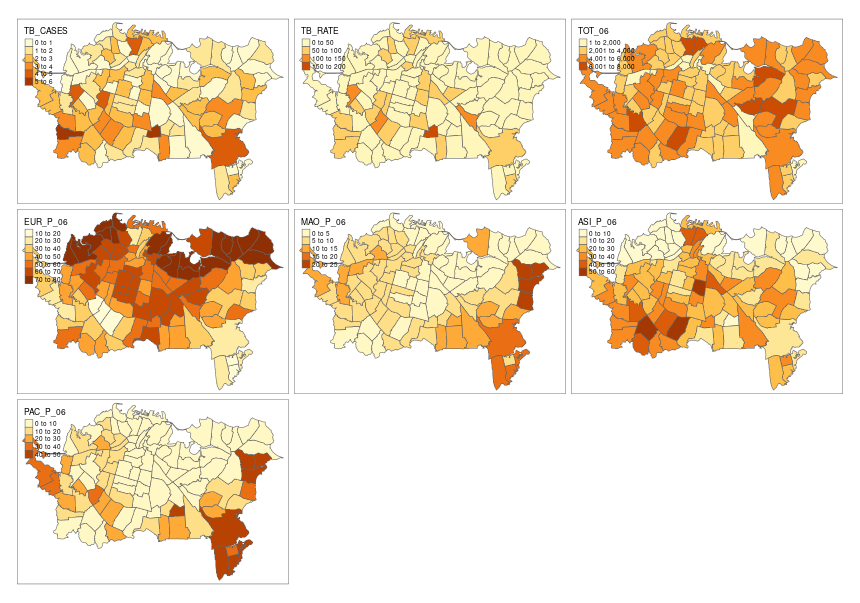

Many methods have been tried

Enter weavingspace

In brief

An approach based on tiling

Elements in a tiling ‘pick up’ data from area units by overlay so we can combine multiple choropleths into a single map

Giving two kinds of map of complex multi­variate data (tiled and woven)



weavingspace

A python module developed for making tiled maps

github.com/DOSull/weaving-space

> pip install weavingspace

Uses geopandas and a lot of geometry, leveraging shapely

Implements well over a hundred tilings and weave tiling patterns

import geopandas as gpd
1from weavingspace import TileUnit
2from weavingspace import Tiling

tile = TileUnit(tiling_type = "cairo", spacing = 500,
                crs = ak.crs).inset_prototile(10)
tile.plot(r = 1, show_vectors = True)
1
A TileUnit stores geometry of a tiling and translation vectors so we can tile a map.
2
A Tiling is the result of applying a TileUnit to a geospatial dataset.

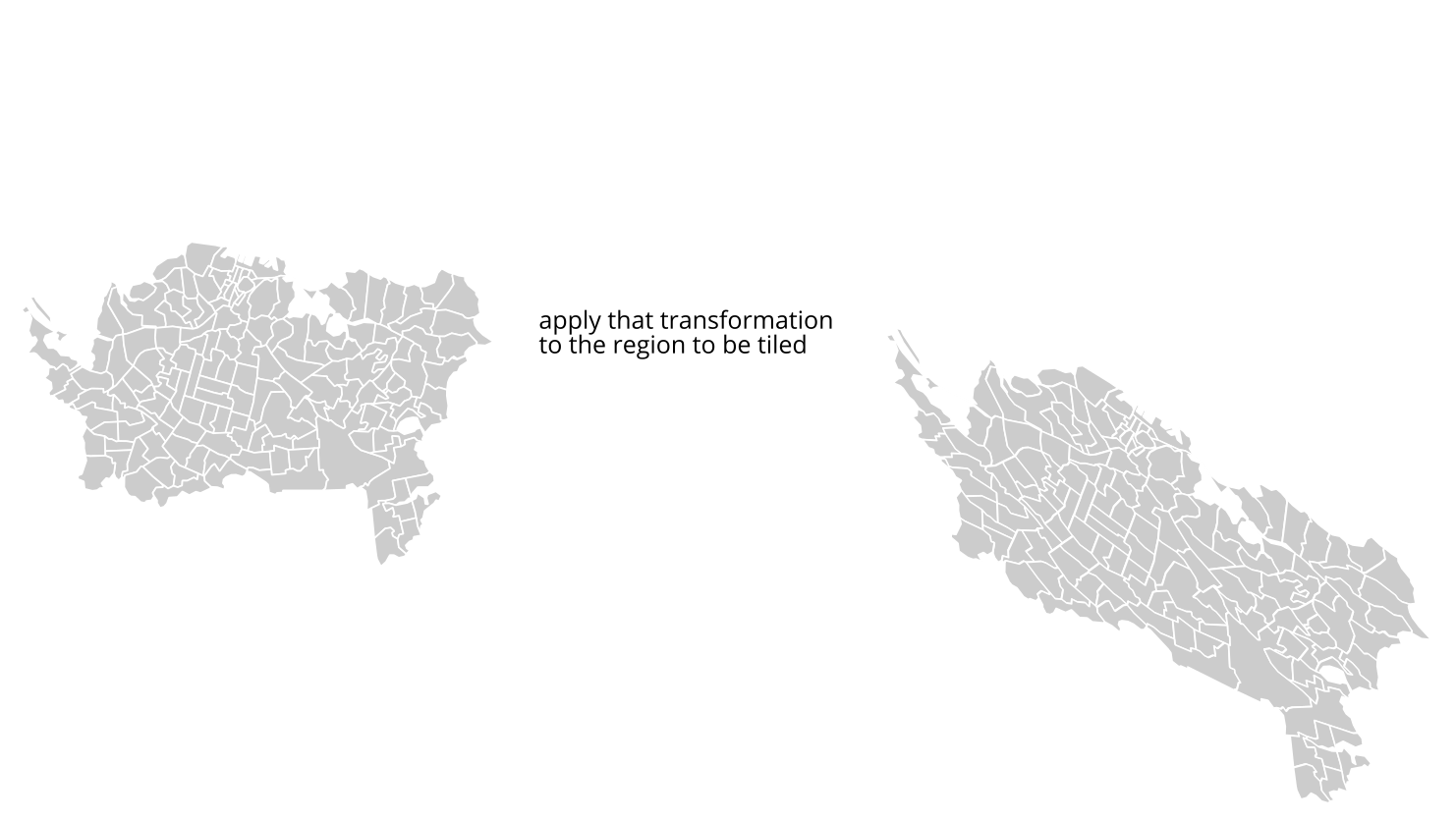

The tiling process

1tiling = Tiling(tile, ak)
tiled_map = tiling.get_tiled_map(prioritise_tiles = True)

2tiled_map.legend        = False
tiled_map.ids_to_map    = list("abcd")
tiled_map.vars_to_map   = ["income", "employment", "crime", "housing"]
tiled_map.colors_to_use = ["Reds", "Blues", "Greens", "Greys"]

3fig = tiled_map.render()
1
Make the tiling and get a map.
2
Set up a bunch of parameters for the final map.
3
Render.

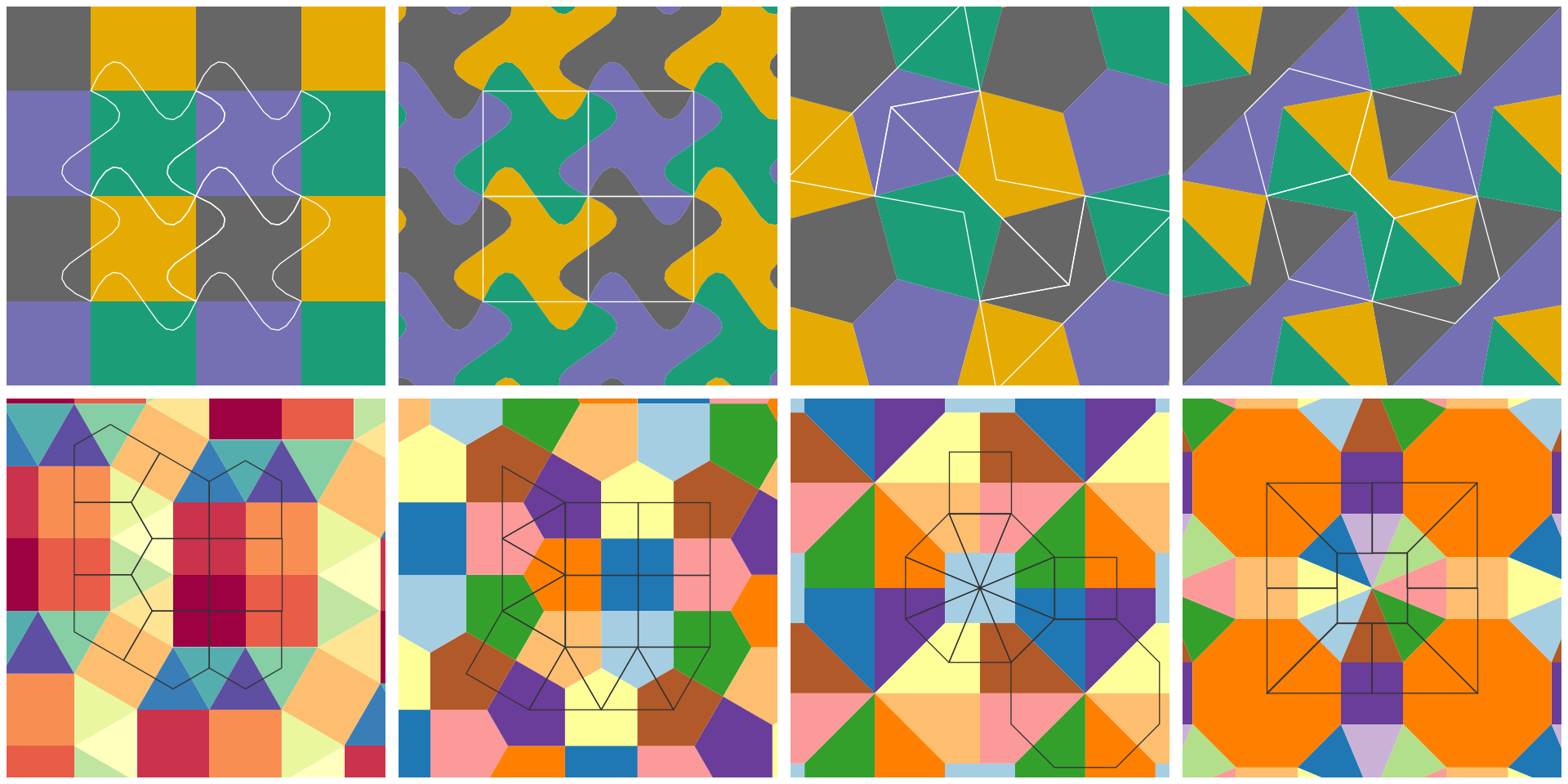

Many options

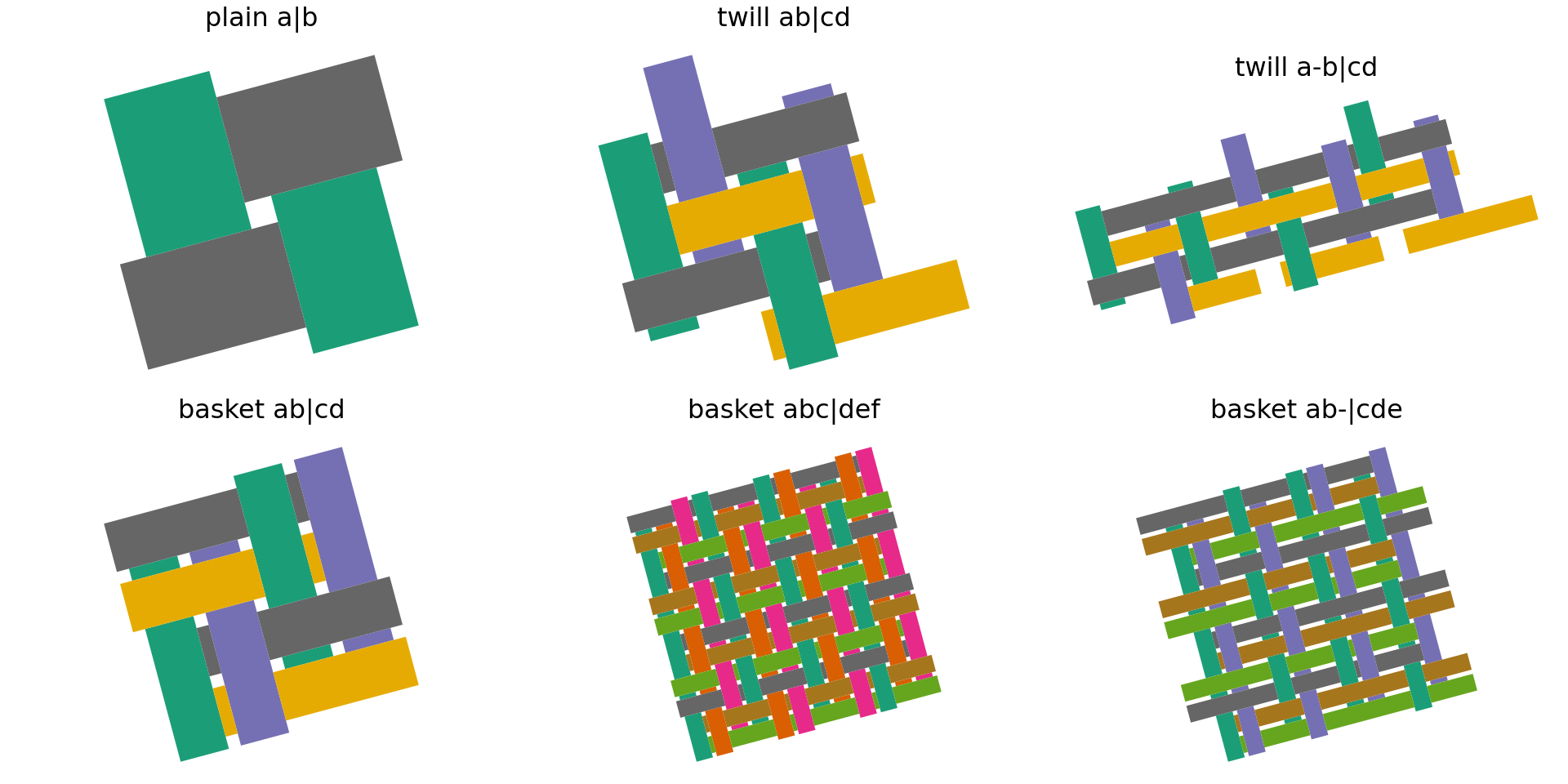

Biaxial weaves

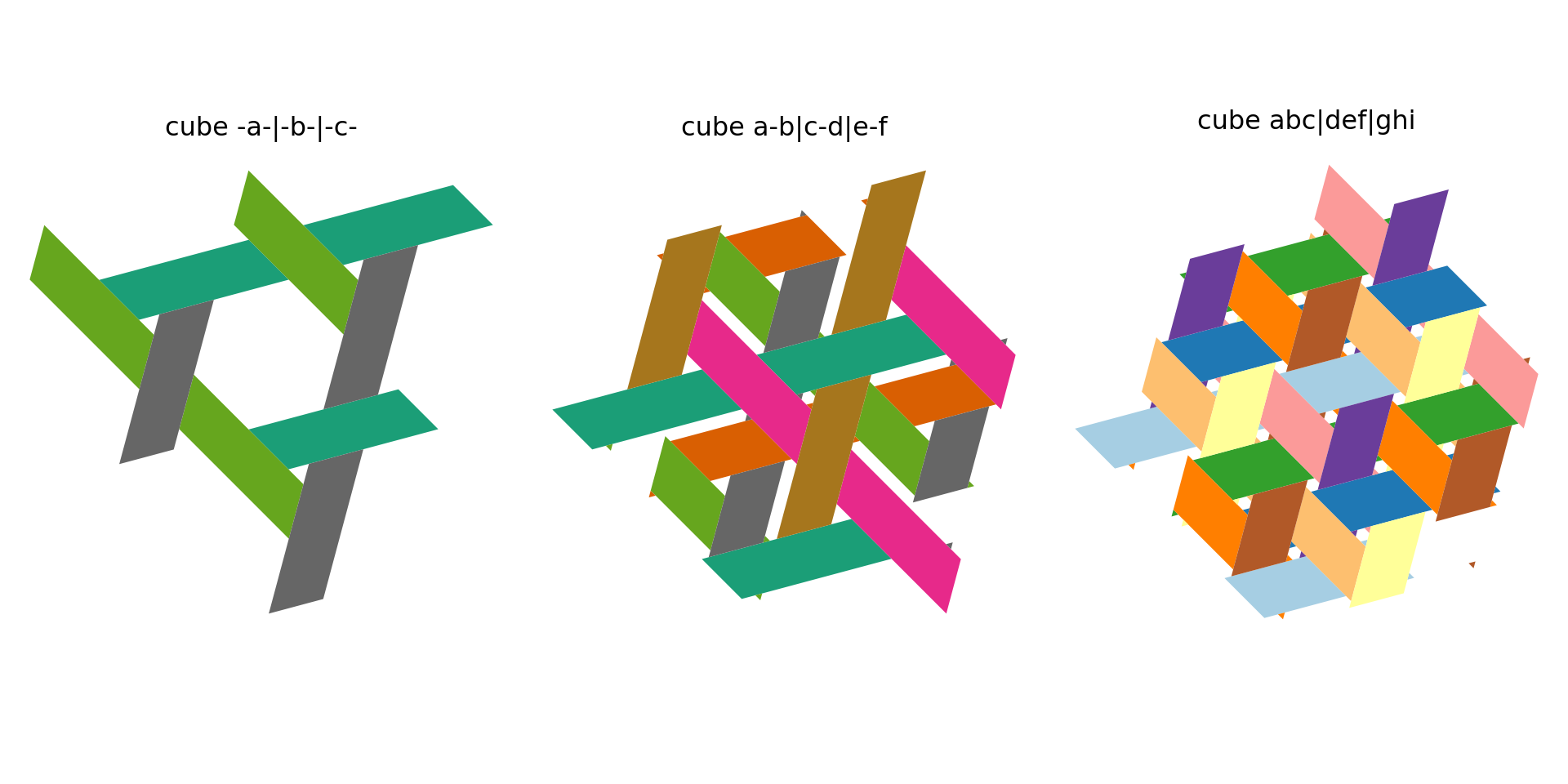

Triaxial weaves

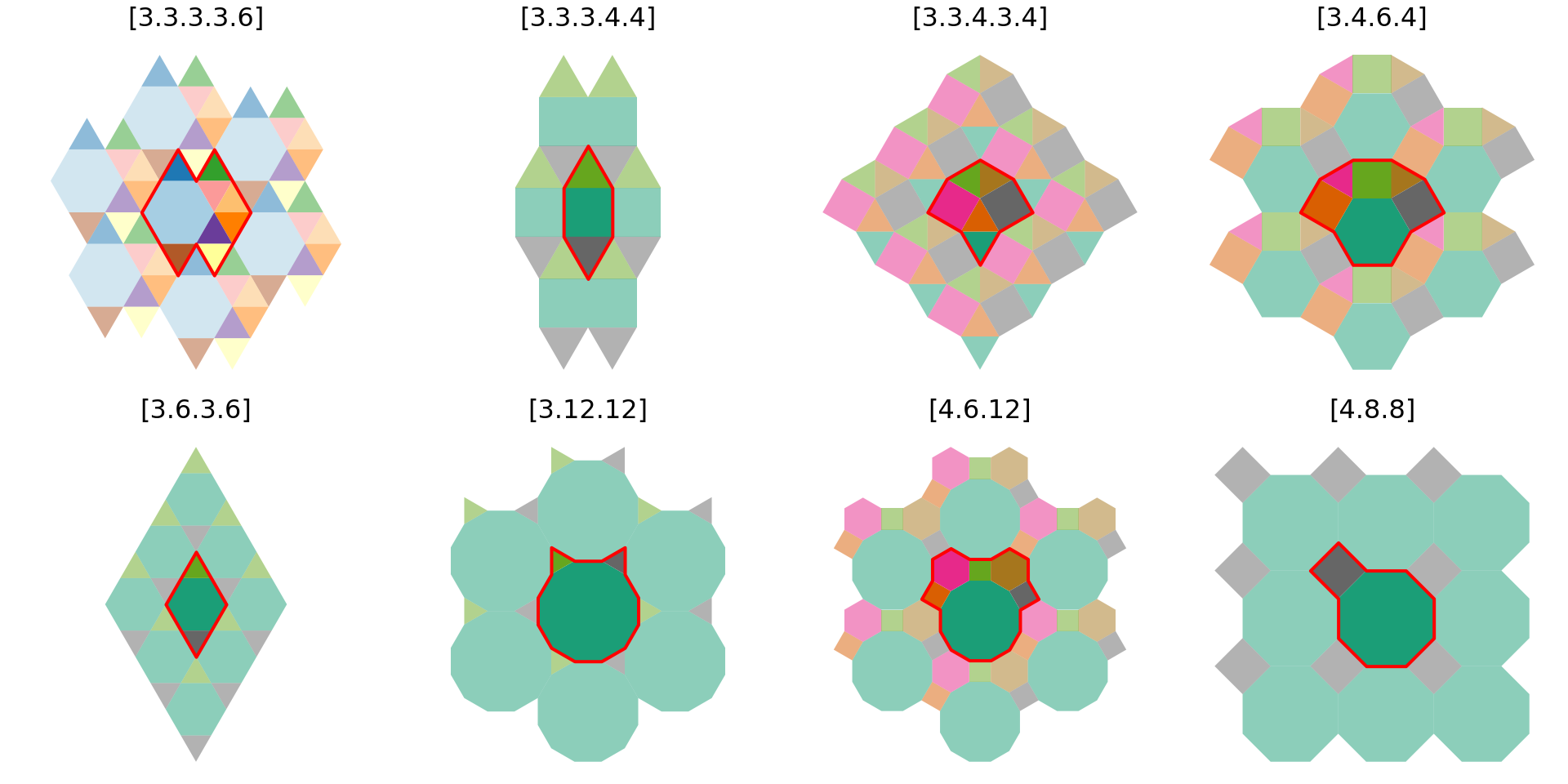

Archimedean tilings

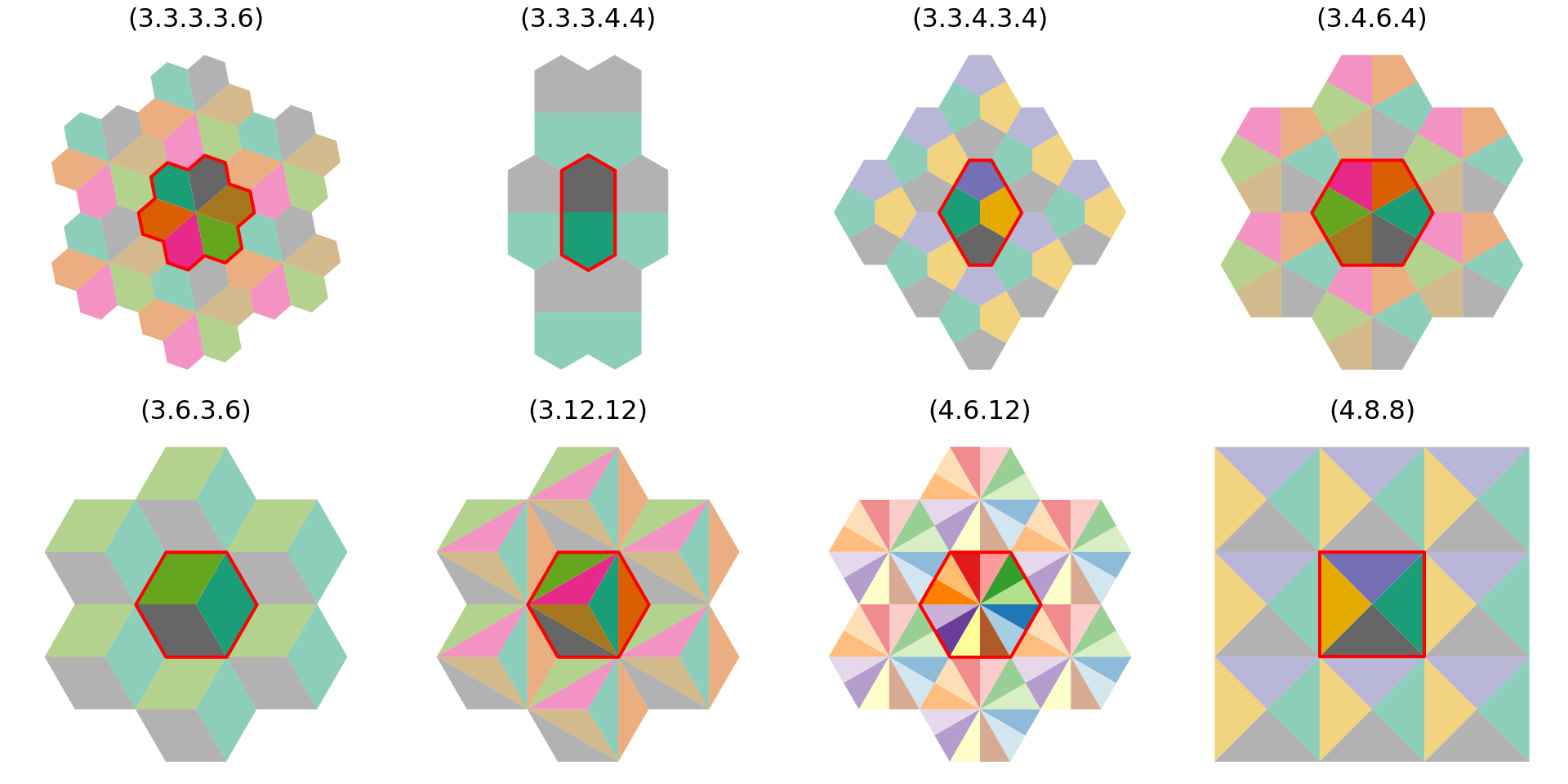

Laves tilings

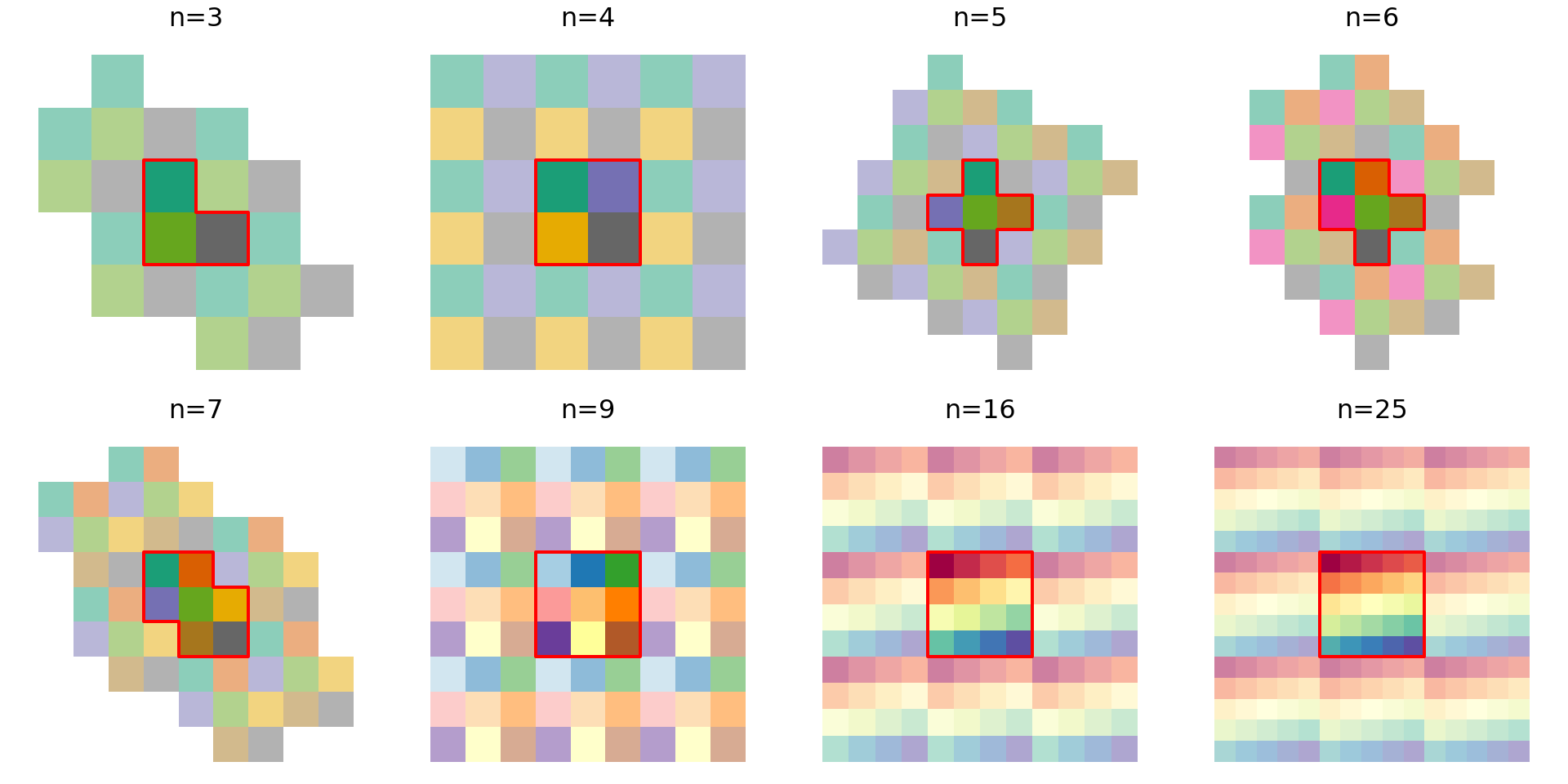

Square colourings

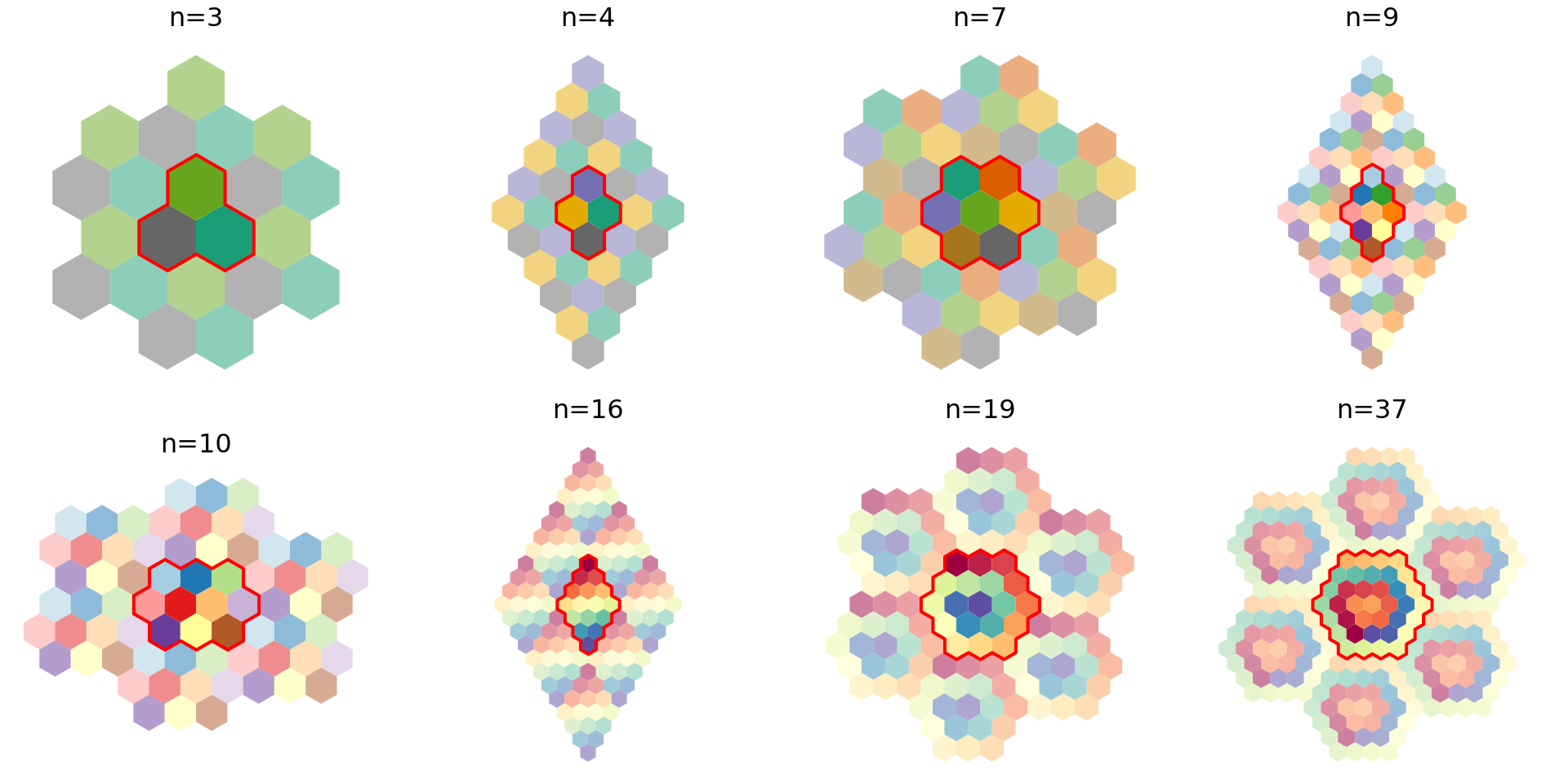

Hexagon colourings

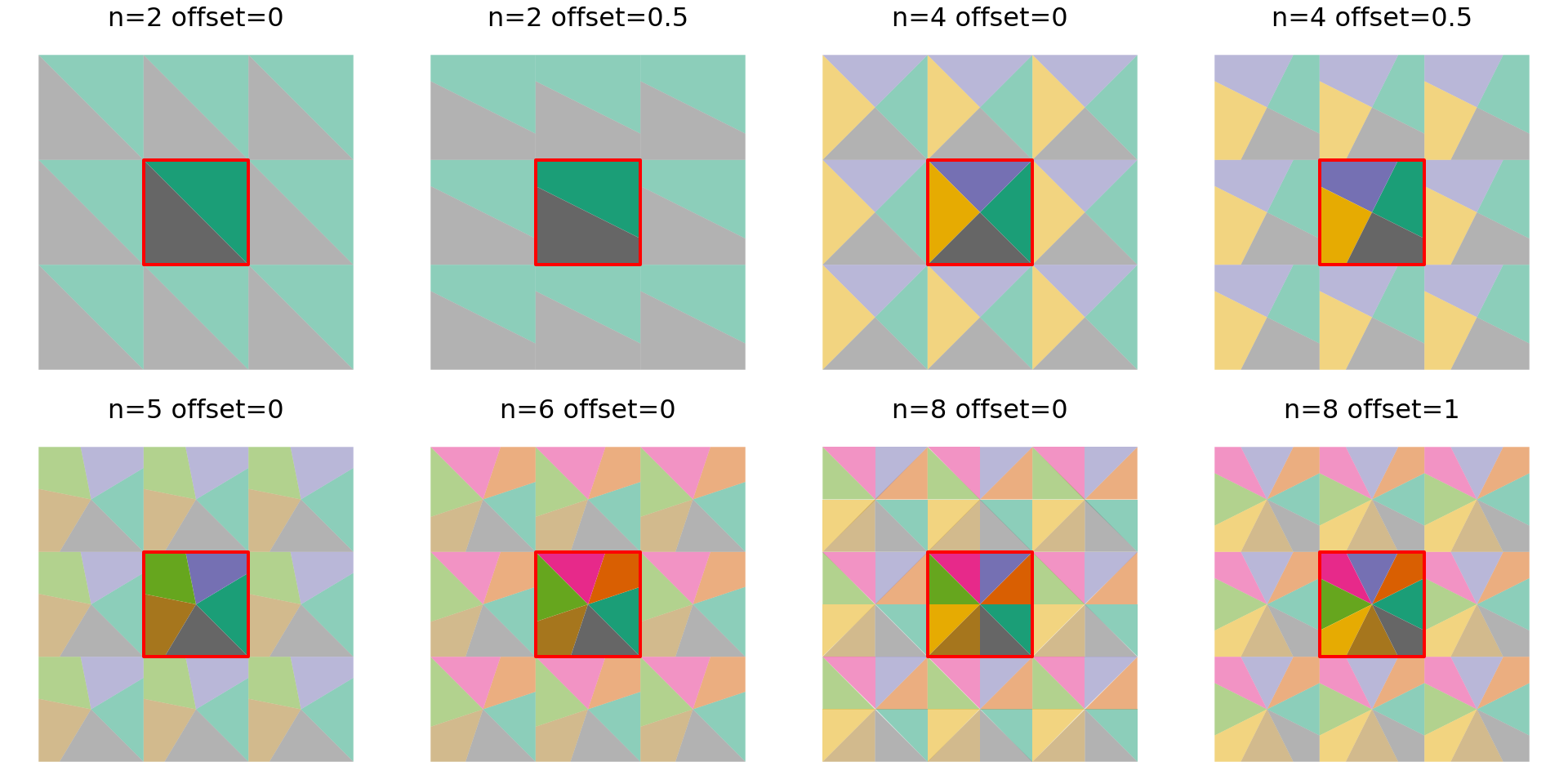

Square slices

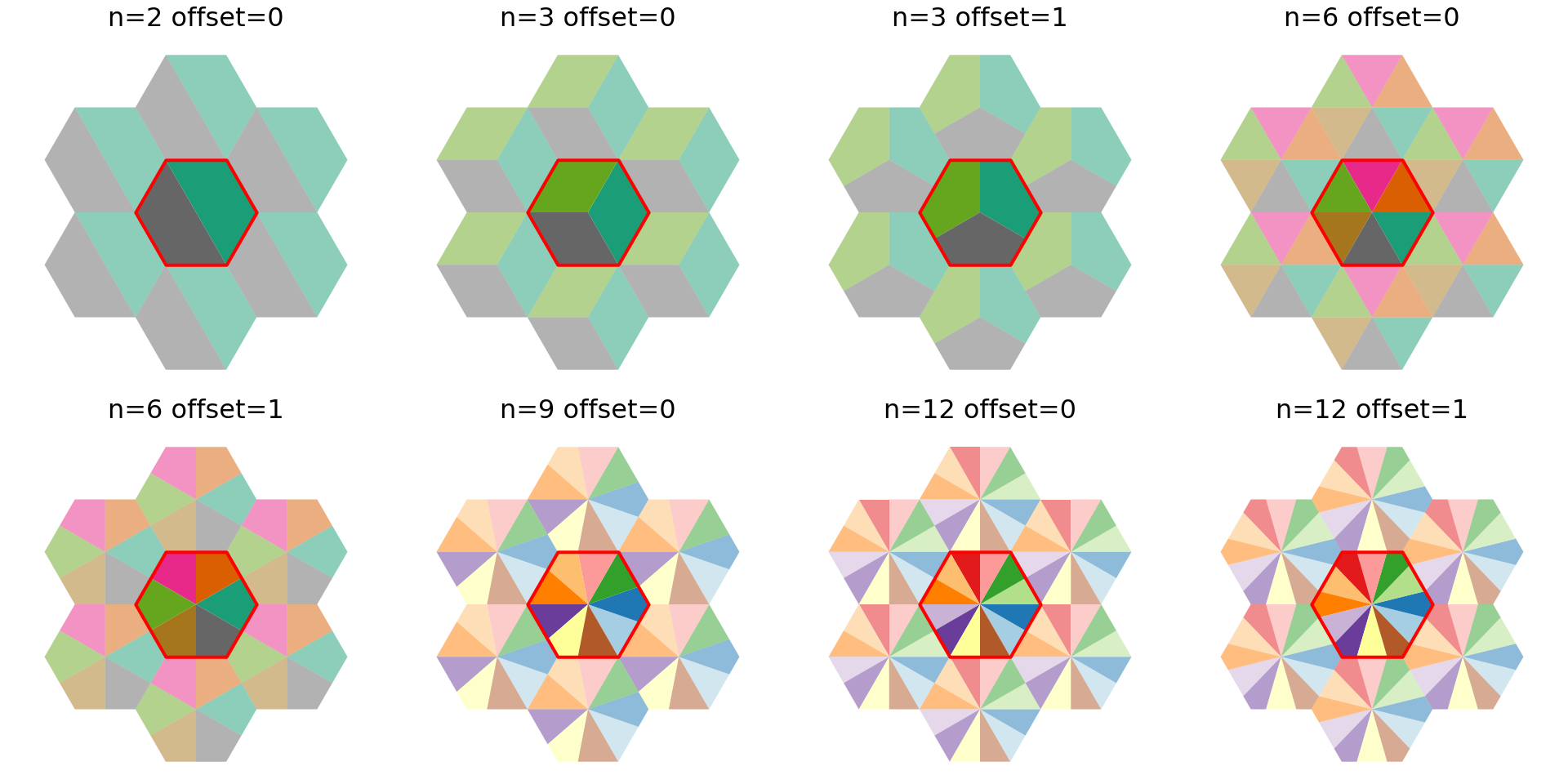

Hexagon slices

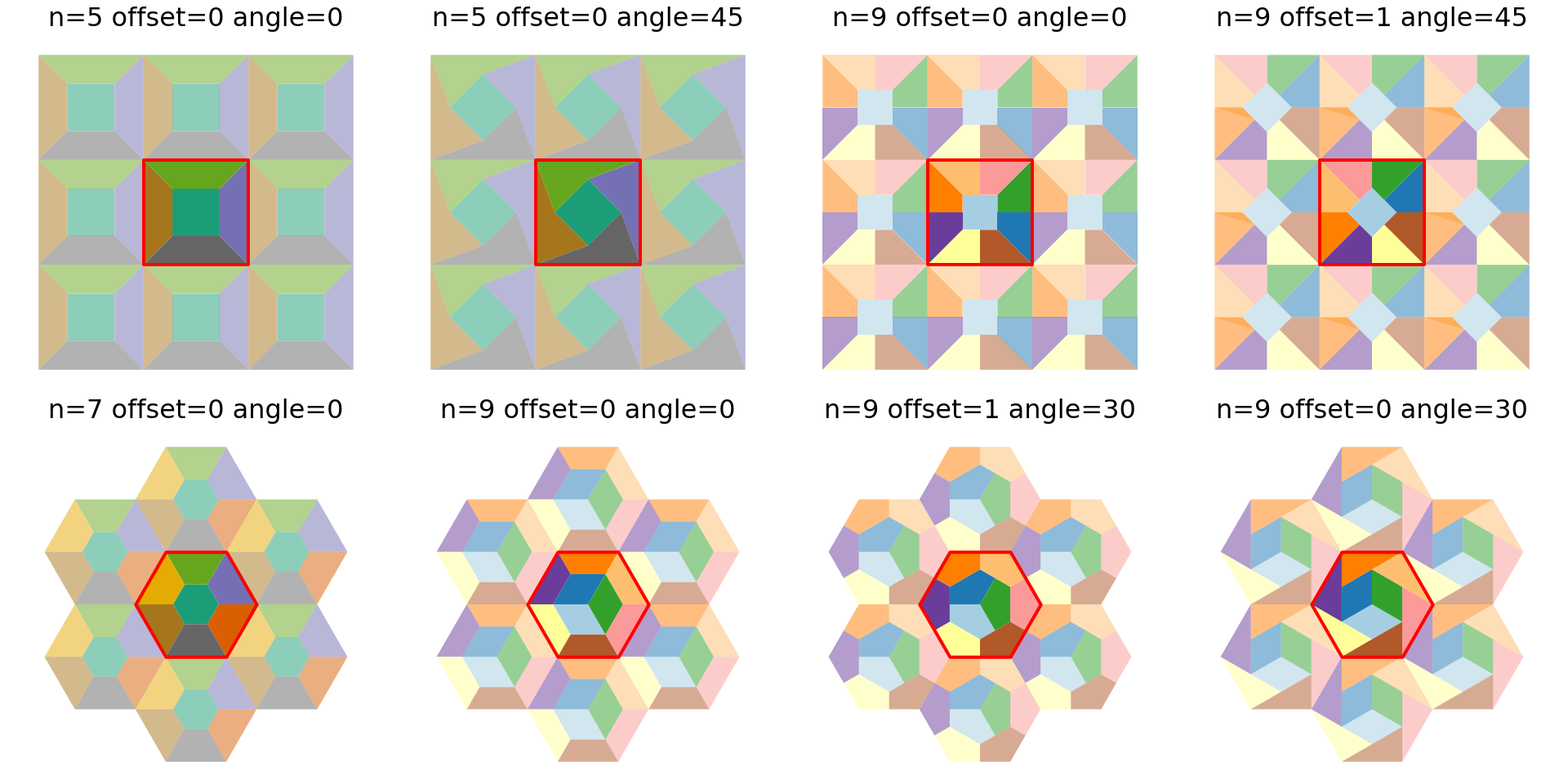

Square and hexagon dissections

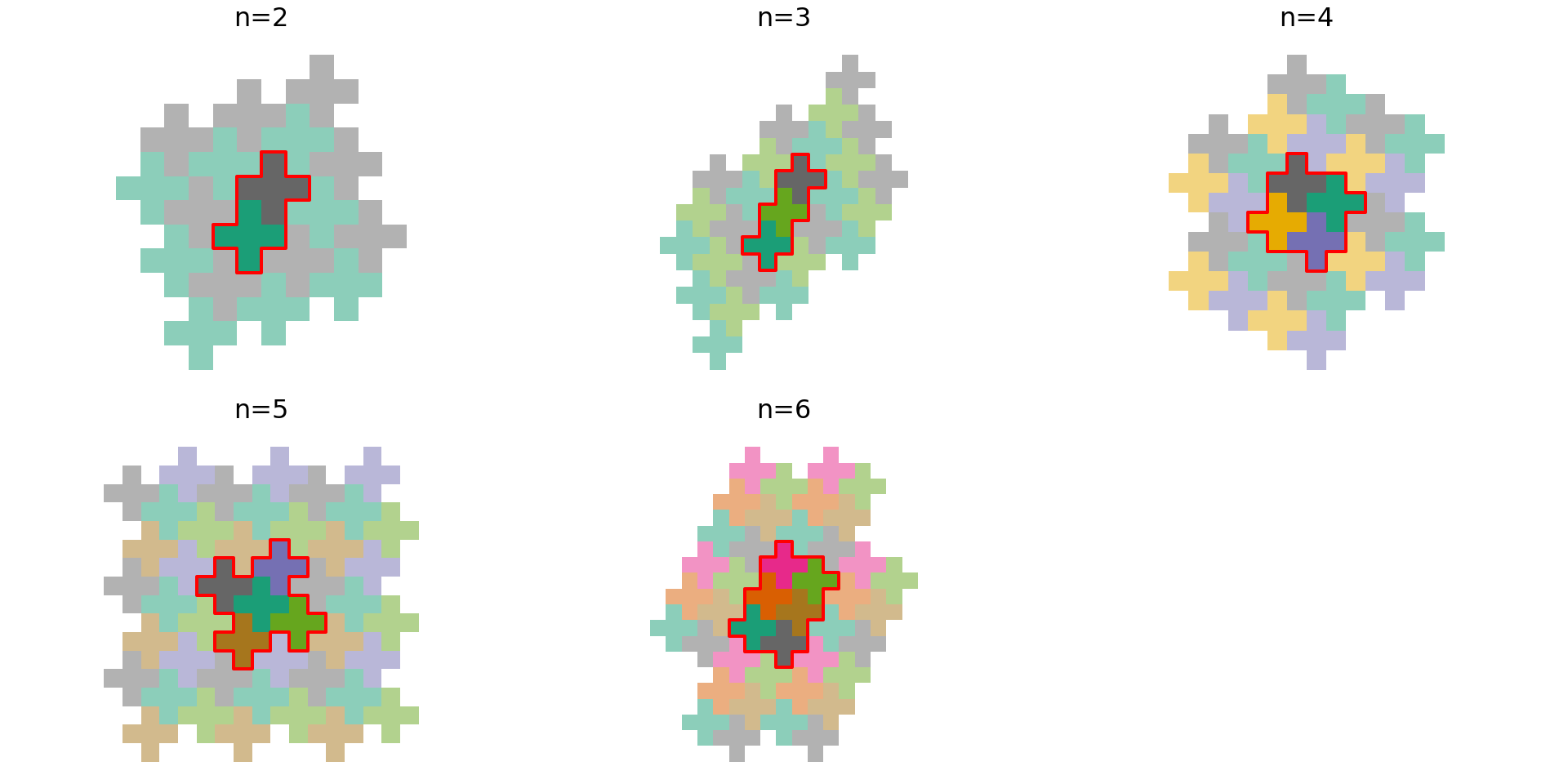

Crosses

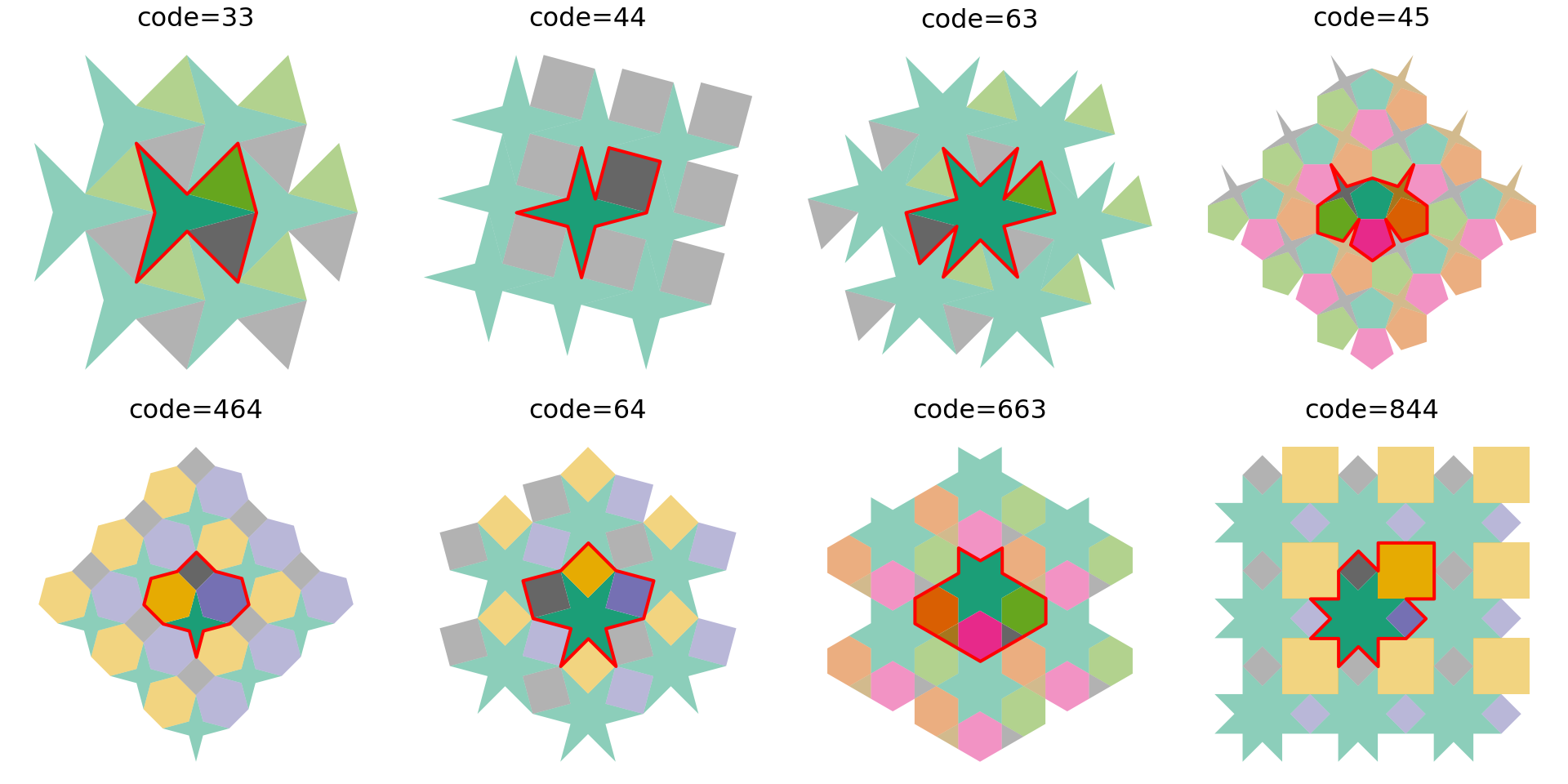

Stars (and polygons)

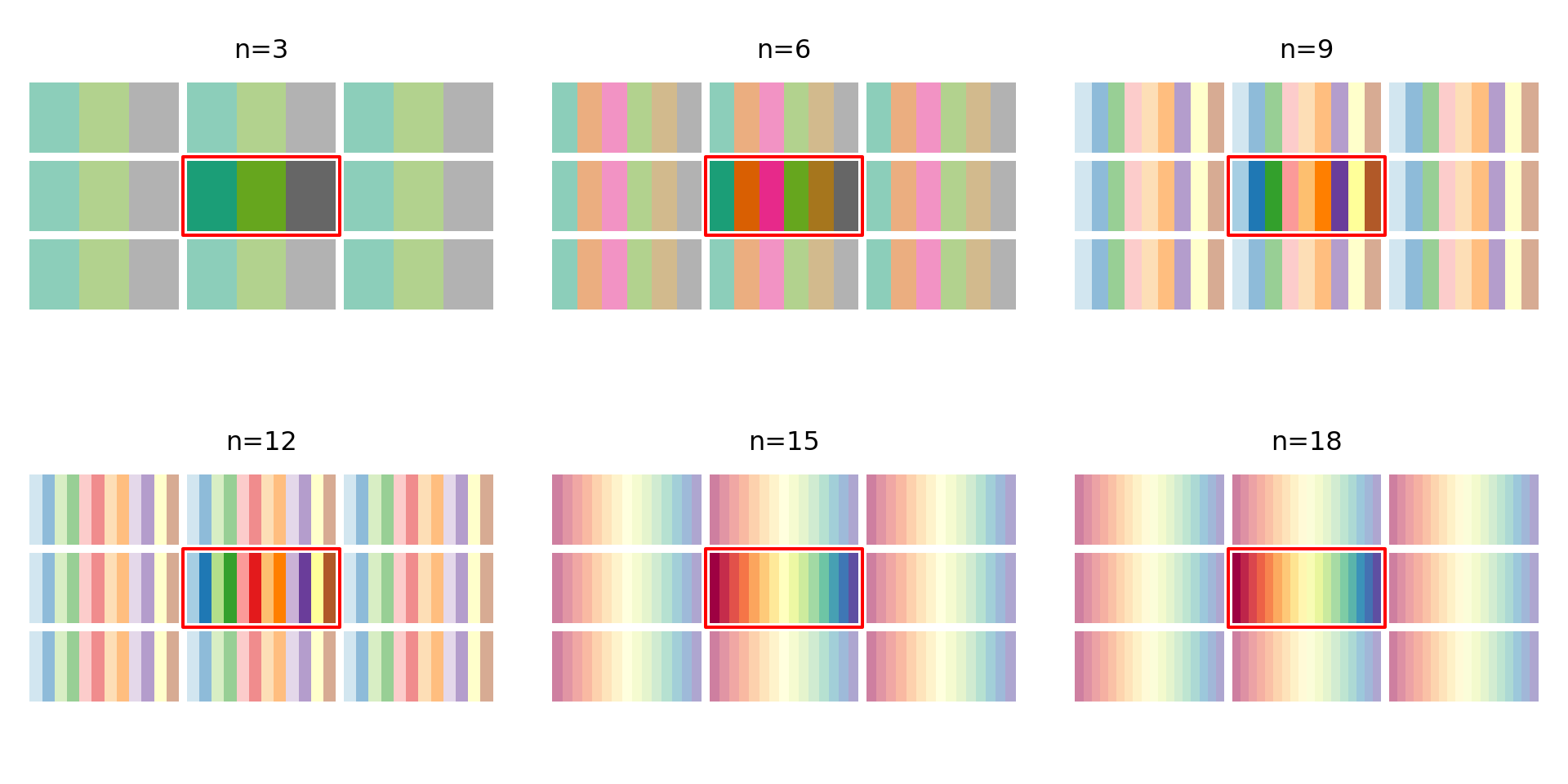

Stripes

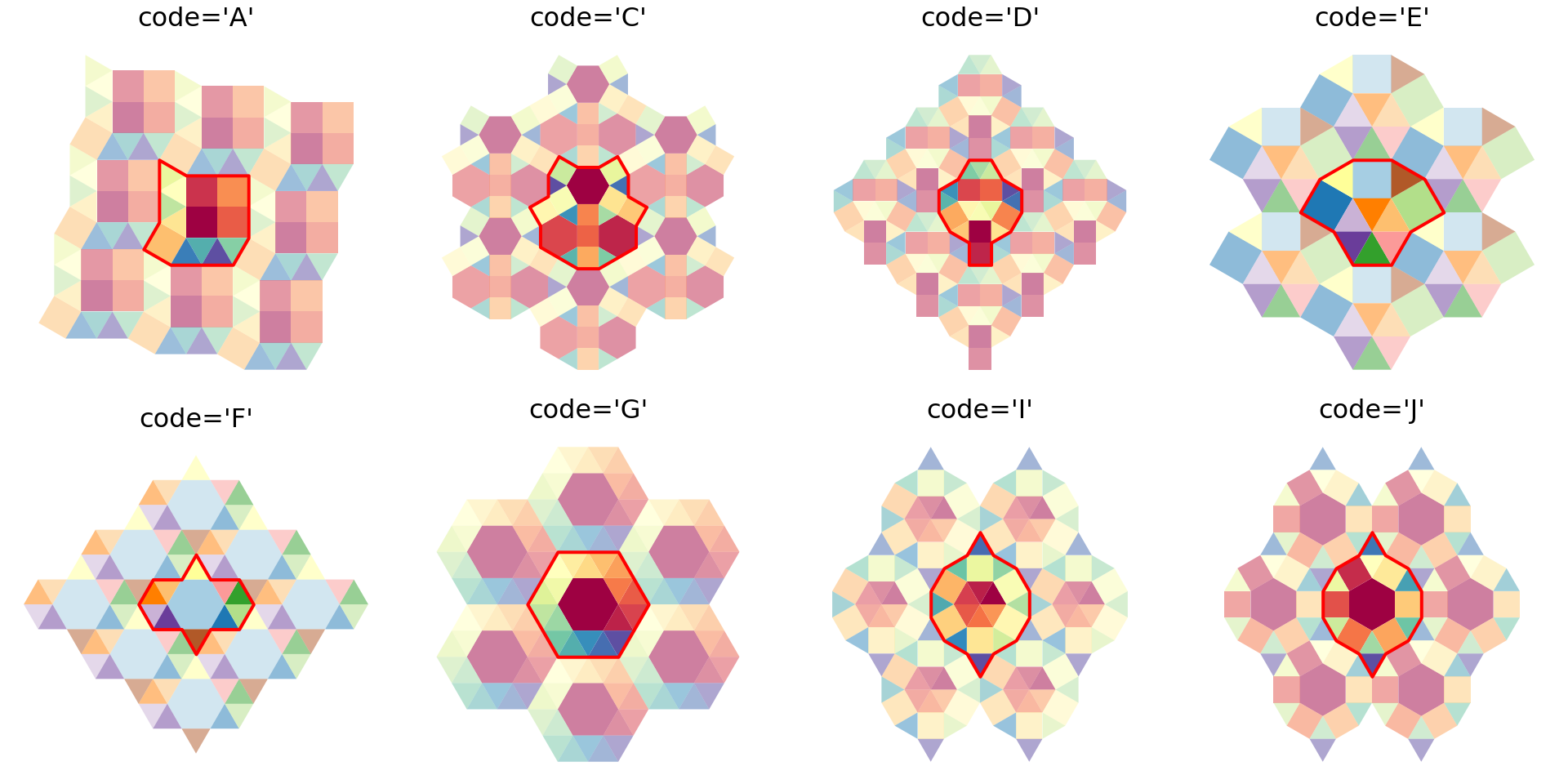

Larger n tilings

Modifying tiles (experimental)

A web app

Make tiled and woven maps without code!

Live demo time!

Some examples

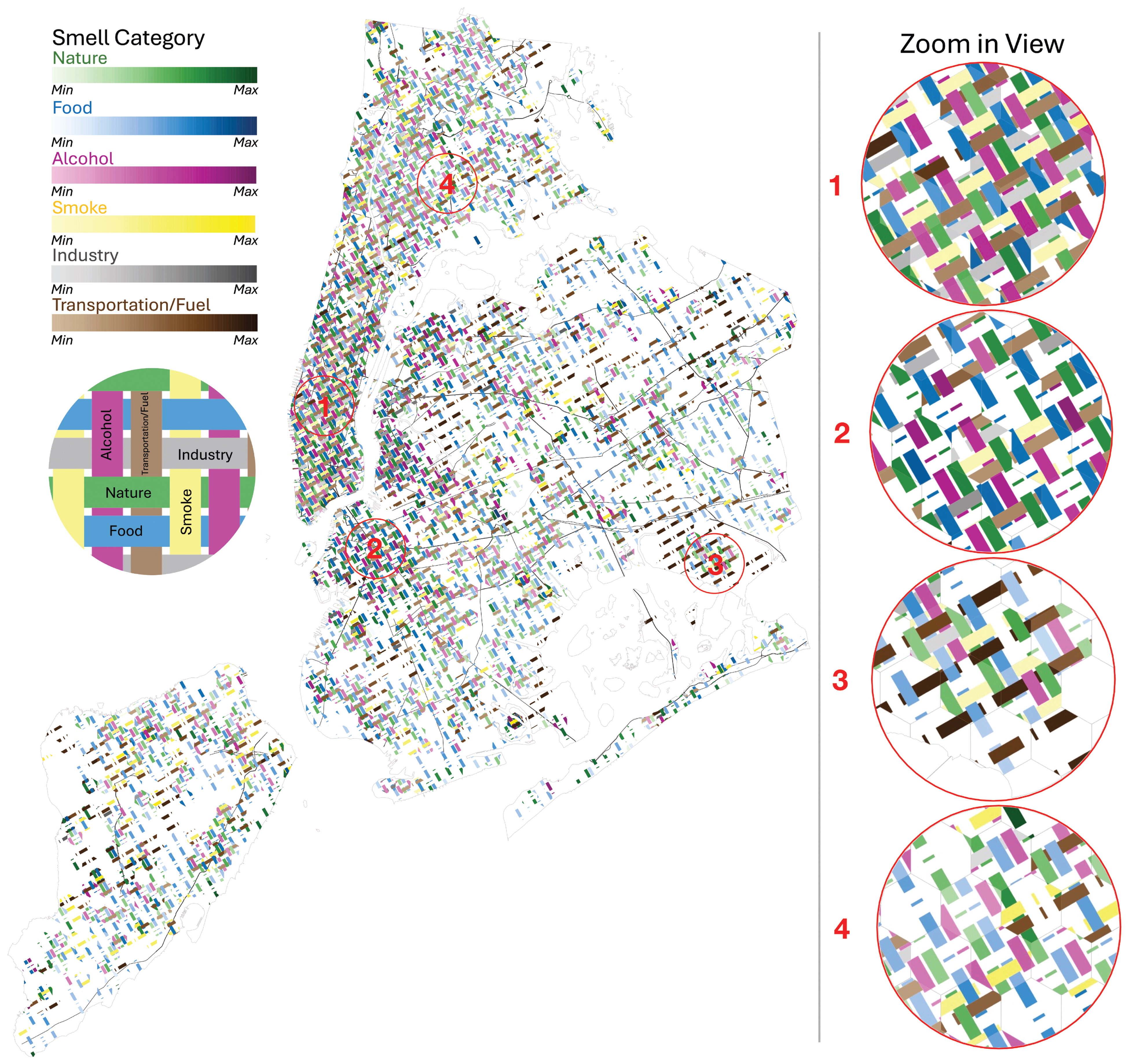

Chen Q, A Poorthuis, and A Crooks. 2025 (online first, April). Mapping the Invisible: Decoding Perceived Urban Smells Through Geosocial Media in New York City. Annals of the Amer­ican Association of Geographers.

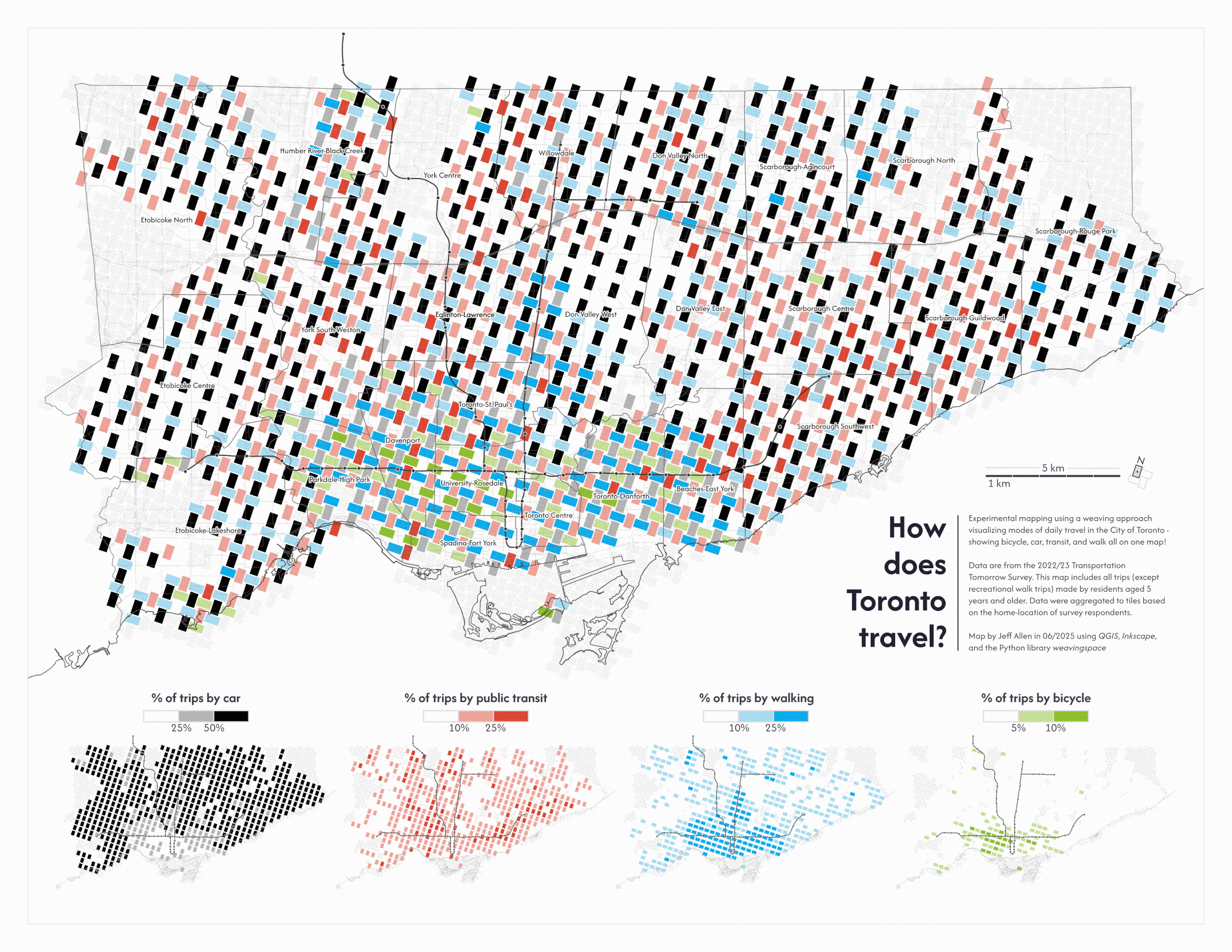

Allen J. 2025. Mapping mode share in Toronto via weaving space. At schoolofcities.github.io.

Questions?

github.com/DOSull/weaving-space

dosull.github.io/mapweaver/app

dosull.github.io
